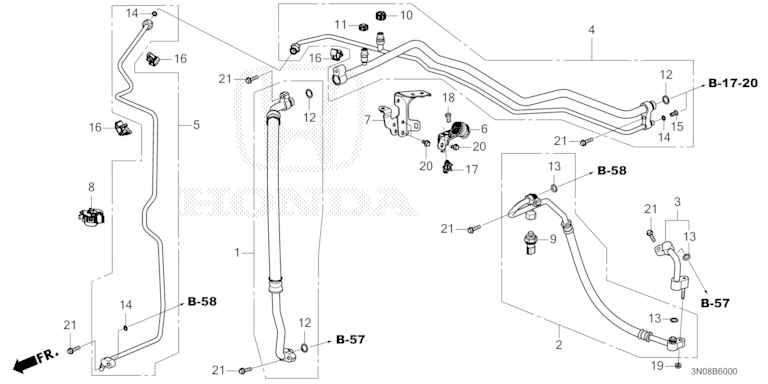

AC Pipe
| Ref No. | Parts No. | Parts Name |
| 1 | 80311-3N0-J01 | SUCTION HOSE PIPE |
| 2 | 80315-3N5-R01 | DISCHARGE HOSE PIPE |
| 3 | 80316-3N5-R01 | DISCHARGE PIPE |
| 4 | 80321-3N5-R01 | AIR CONDITIONER PIPE |
| 5 | 80341-3N5-R01 | RECEIVER PIPE |
| 6 | 80361-3N1-T00 | CLAMP, AIR CONDITIONER PIPE |
| 7 | 80362-3N0-J00 | STAY, AIR CONDITIONER PIPE |
| 8 | 80363-T5A-003 | CLIP, RECEIVER PIPE |
| 9 | 80450-T2F-A01 | PRESSURE SENSOR (SENSATA) |
| 10 | 80865-SL0-003 | CAP, VALVE (H) |
| 11 | 80866-SL0-003 | CAP, VALVE (L) |
| 12 | 80871-ST7-000 | O-RING (5/8″) |
| 13 | 80872-ST7-000 | O-RING (1/2″) |
| 14 | 80873-ST7-000 | O-RING, 8MM |
| 16 | 91548-TTA-003 | CLIP, RECEIVER PIPE |
| 17 | 91548-TV2-E01 | CLIP, RECEIVER PIPE |
| 18 | 93500-04008-04 | SCREW, PAN, 4X8 |
| 19 | 94050-06080 | NUT, FLANGE, 6MM |
| 20 | 95701-06012-08 | BOLT, FLANGE, 6X12 |
| 21 | 95701-06025-08 | BOLT, FLANGE, 6X25 |
