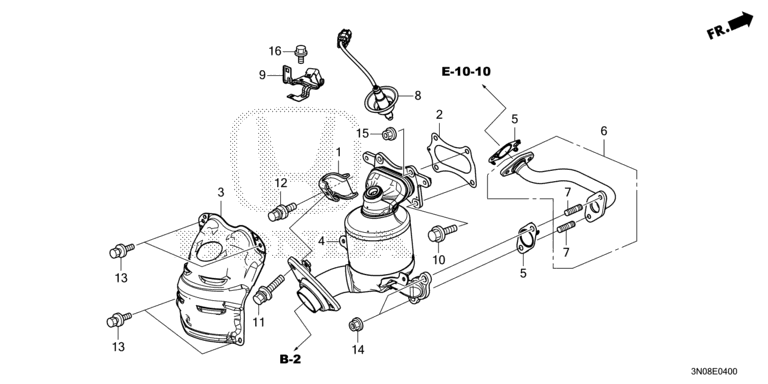

Catalytic Converter
| Ref No. | Parts No. | Parts Name |
| 1 | 11941-6Y0-000 | STAY COMP., CONVERTER |
| 2 | 18115-5R0-004 | GASKET, CONVERTER (NIPPON LEAKLESS) |
| 3 | 18120-6Y0-000 | COVER, CONVERTER |
| 4 | 18190-6HN-000 | Three Way Catalytic Converter (WU-TWC) |
| 5 | 18716-5R0-004 | EGR PIPE GASKET |
| 6 | 18717-5R0-010 | EGR PIPE |
| 7 | 18720-R70-A00 | BOLT, STUD, 8X29 |
| 8 | 36531-5WJ-004 | Air Fuel Ratio Sensor (A/F) (Sensor 1) |
| 9 | 36535-6Y0-000 | STAY, SENSOR |
| 10 | 90001-RB0-000 | BOLT, FLANGE, 8X22 |
| 11 | 90001-RE1-Z00 | BOLT-WASHER, 8X32 |
| 12 | 90006-5R0-000 | BOLT-WASHER, 8X20 |
| 13 | 93404-06020-08 | BOLT-WASHER, 6X20 |
| 14 | 94050-08050 | NUT, FLANGE, 8MM |
| 15 | 94050-08080 | NUT, FLANGE, 8MM |
| 16 | 95701-06012-08 | BOLT, FLANGE, 6X12 |
