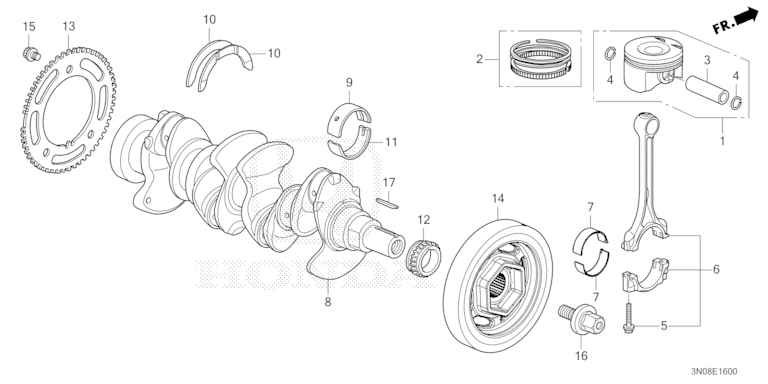

Crankshaft
| Ref No. | Parts No. | Parts Name |
| 1 | 13010-5P6-J01 | PISTON STD |
| 2 | 13011-5WJ-A01 | PISTON RING STD (TPR) |
| 3 | 13111-5K0-A00 | PISTON PIN |
| 4 | 13115-5K0-A00 | PISTON PIN CLIP |
| 5 | 13204-PWA-003 | CONNECTING ROD BOLT |
| 6 | 13210-5R1-000 | CONNECTING ROD |
| 7 | 13211-5R0-023 | BEARING A, CONNECTING ROD (BLUE) (DAIDO) |
| 7 | 13212-5R0-023 | BEARING B, CONNECTING ROD (BLACK) (DAIDO) |
| 7 | 13213-5R0-023 | BEARING C, CONNECTING ROD (BROWN) (DAIDO) |
| 7 | 13214-5R0-023 | BEARING D, CONNECTING ROD (GREEN) (DAIDO) |
| 7 | 13215-5R0-023 | BEARING E, CONNECTING ROD (YELLOW) (DAIDO) |
| 7 | 13216-5R0-023 | BEARING F, CONNECTING ROD (PINK) (DAIDO) |
| 7 | 13217-5R0-023 | BEARING G, CONNECTING ROD (RED) (DAIDO) |
| 8 | 13310-6X1-J00 | CRANKSHAFT COMP. |
| 9 | 13322-6A0-A01 | BEARING B, MAIN UPPER (BLACK) (TAIHO) |
| 9 | 13323-6A0-A01 | BEARING C, MAIN UPPER (BROWN) (TAIHO) |
| 9 | 13324-6A0-A01 | BEARING D, MAIN UPPER (GREEN) (TAIHO) |
| 9 | 13325-6A0-A01 | BEARING E, MAIN UPPER (YELLOW) (TAIHO) |
| 9 | 13326-6A0-A01 | BEARING F, MAIN UPPER (PINK) (TAIHO) |
| 9 | 13327-6A0-A01 | BEARING G, MAIN UPPER (RED) (TAIHO) |
| 10 | 13331-5R0-003 | THRUST WASHER (DAIDO) |
| 11 | 13342-6A0-A01 | BEARING B, MAIN LOWER (BLACK) (TAIHO) |
| 11 | 13343-6A0-A01 | BEARING C, MAIN LOWER (BROWN) (TAIHO) |
| 11 | 13344-6A0-A01 | BEARING D, MAIN LOWER (GREEN) (TAIHO) |
| 11 | 13345-6A0-A01 | BEARING E, MAIN LOWER (YELLOW) (TAIHO) |
| 11 | 13346-6A0-A01 | BEARING F, MAIN LOWER (PINK) (TAIHO) |
| 11 | 13347-6A0-A01 | BEARING G, MAIN LOWER (RED) (TAIHO) |
| 12 | 13621-5R0-003 | SPROCKET, CAM CHAIN DRIVE (23T) |
| 13 | 13623-5R0-000 | PLATE, CRANK PULSER |
| 14 | 13810-5WJ-A02 | DAMPER COMP., CRANKSHAFT |
| 15 | 90013-RB0-003 | BOLT, SPECIAL, 8X9 |
| 16 | 90017-PWA-G02 | BOLT-WASHER, 14X36 |
| 17 | 90704-5R0-000 | KEY, SPECIAL |
