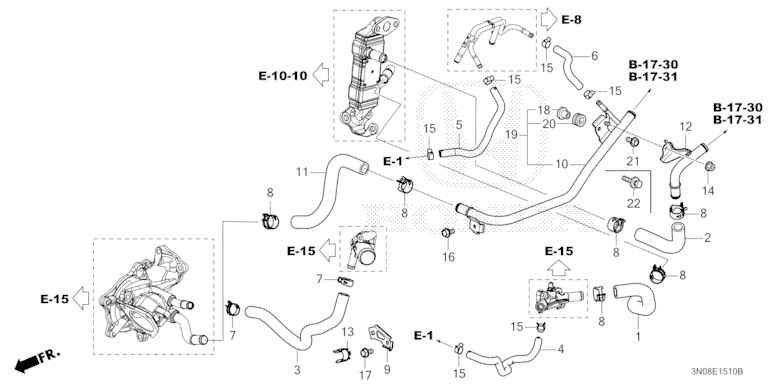

Water Hose
| Ref No. | Parts No. | Parts Name |
| 1 | 19431-6Y0-000 | EGR COOLER HOSE IN. |
| 2 | 19432-6Y0-000 | EGR COOLER OUTLET HOSE |
| 3 | 19504-6Y0-000 | BYPASS HOSE |
| 4 | 19507-6Y0-000 | THROTTLE BODY IN HOSE |
| 5 | 19508-6Y0-000 | THROTTLE BODY OUTLET HOSE |
| 6 | 19509-6Y0-000 | BREATHER HEATER HOSE |
| 7 | 19512-PK2-003 | CLIP, HOSE, 18.7MM |
| 8 | 19513-PE0-003 | CLAMP, WATER HOSE (21.7MM) (CHUO SPRING) |
| 9 | 19524-6Y0-000 | STAY, BYPASS HOSE CLAMP |
| 11 | 19563-6Y0-000 | HOSE, HEATER |
| 12 | 19565-6Y0-J00 | PIPE COMP. B, HEATER |
| 13 | 25216-5DE-003 | CLAMP, WATER HOSE (D21) |
| 14 | 94050-06080 | NUT, FLANGE, 6MM |
| 15 | 95002-41250-04 | CLAMP, TUBE (D12.5) |
| 16 | 95701-06012-08 | BOLT, FLANGE, 6X12 |
| 17 | 95701-06014-08 | BOLT, FLANGE, 6X14 |
| 18 | 17116-PWA-000 | COLLAR, ENGINE COVER |
| 19 | 19560-6Y0-J00 | PIPE COMP., HEATER |
| 20 | 19566-6Y0-J00 | RUBBER, HEATER PIPE |
| 22 | 90001-6Y0-J00 | BOLT-WASHER, 6X22 |
