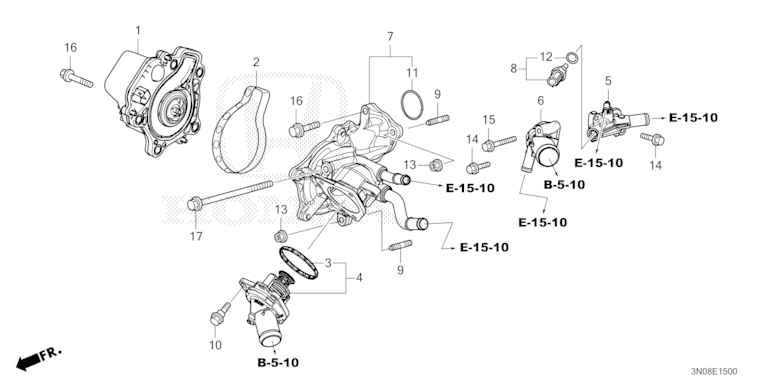

Electric Water Pump
| Ref No. | Parts No. | Parts Name |
| 1 | 19200-5K0-A01 | ELECTRIC WATER PUMP |
| 2 | 19222-5K0-A01 | WATER PUMP PACKING |
| 3 | 19305-PNA-003 | SEAL, THERMOSTAT COVER (NIPPON THERMOSTAT) |
| 4 | 19310-5K9-004 | THERMOSTAT COVER |
| 5 | 19315-6Y0-000 | COVER COMP., WATER OUTLET |
| 6 | 19317-6Y0-000 | COVER, JOINT |
| 7 | 19410-6Y0-000 | PASSAGE COMP., WATER |
| 8 | 37870-RWC-A01 | SENSOR WATER TEMPERATURE (PANASONIC) |
| 9 | 90025-RGA-000 | BOLT, STUD, 8X28 |
| 10 | 90050-5A2-003 | BOLT, SPECIAL, 6X19 (MEIRA) |
| 11 | 91306-5R0-003 | O-RING, 54.4X3.1 (NOK) |
| 12 | 91307-PLC-004 | O-RING, 9.5X1.9 (PANASONIC) |
| 13 | 94050-08080 | NUT, FLANGE, 8MM |
| 14 | 95701-06020-08 | BOLT, FLANGE, 6X20 |
| 15 | 95701-06045-08 | BOLT, FLANGE, 6X45 |
| 16 | 95701-08030-08 | BOLT, FLANGE, 8X30 |
| 17 | 95701-08120-08 | BOLT, FLANGE, 8X120 |
