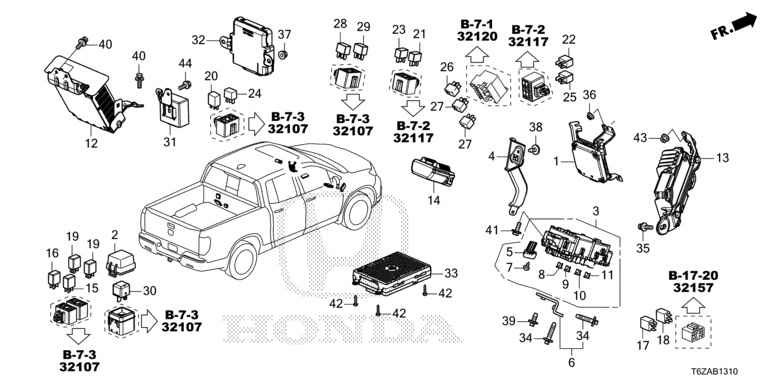

Control Unit Cabin1

31600-TG7-A01

Ref No. Parts No. Parts Name Unit Qty
1 31600-TG7-A01 STABILIZER UNIT, VOLTAGE 001
3 38200-T6Z-A71 BOX ASSY., FUSE (REWRITABLE) 001
4 38201-TG7-A00 BRACKET, DRIVER FUSE BOX 001
8 38221-SNA-A31 FUSE, BLADE (7.5A) 017
9 38221-SNA-A41 FUSE, BLADE (10A) 010
10 38221-SNA-A51 FUSE, BLADE (15A) 001
11 38221-SNA-A61 FUSE, BLADE (20A) 012
13 38700-TG7-A62 ACM UNIT (REWRITABLE) 001
14 38890-T6Z-A11 CAN GATEWAY UNIT, (REWRITABLE) 001
15 39792-SDA-A01 RELAY ASSY. (MICRO ISO) (OMRON) (TRAILER SMALL) 001
16 39792-SDA-A01 RELAY ASSY. (MICRO ISO) (OMRON) (TRAILER CHARGE) 001
17 39792-SDA-A01 RELAY ASSY. (MICRO ISO) (OMRON) (RR. BLOWER) 001
18 39792-SDA-A01 RELAY ASSY. (MICRO ISO) (OMRON) (FR. BLOWER) 001
19 39792-SJC-A01 RELAY ASSY., POWER (MICRO ISO) (OMRON) (RR. P.W. SLIDE) 002
20 39794-S10-003 RELAY ASSY., POWER (5P) (MICRO ISO) (MITSUBA) (TAILGATE UNLOCK) 001
21 39794-SDA-A03 RELAY ASSY., POWER (MICRO ISO) (OMRON) (FR. ACCESSORY) 001
22 39794-SDA-A03 RELAY ASSY., POWER (MICRO ISO) (OMRON) (AVS) 001
23 39794-SDA-A03 RELAY ASSY., POWER (MICRO ISO) (OMRON) (INTERIOR LIGHT CUT) 001
25 39794-SDA-A03 RELAY ASSY., POWER (MICRO ISO) (OMRON) (HSW) 001
26 39794-SDA-A03 RELAY ASSY., POWER (MICRO ISO) (OMRON) (ACCESSORY) 001
27 39794-SDA-A03 RELAY ASSY., POWER (MICRO ISO) (OMRON) (IGNITION 1) 002
28 39794-SDA-A03 RELAY ASSY., POWER (MICRO ISO) (OMRON) (FUEL LID) 001
29 39794-SDA-A03 RELAY ASSY., POWER (MICRO ISO) (OMRON) (4WD) 001
31 39992-T6Z-A01 TRAILER UNIT 001
32 48310-5MM-A12 CONTROL UNIT, AWD (REWRITABLE) 001
33 8A370-T6Z-A02 WIRELESS CHARGER UNIT 001
35 90148-T5A-003 BOLT, EARTH, 6X24 001
36 90301-SP0-003 NUT, PAINT CUTTING, 6MM 003
37 90361-SV4-003 NUT, PAINT CUTTING, 6MM 002
38 91551-T90-A00 BOLT, 6X18 (MAG-FORM) 001
41 93405-06020-08 BOLT-WASHER, 6X20 001
42 93913-14420 SCREW, TAPPING, 4X16 (PO) 004
43 94071-06080 NUT-WASHER, 6MM 001
44 95701-06016-08 BOLT, FLANGE, 6X16 001
