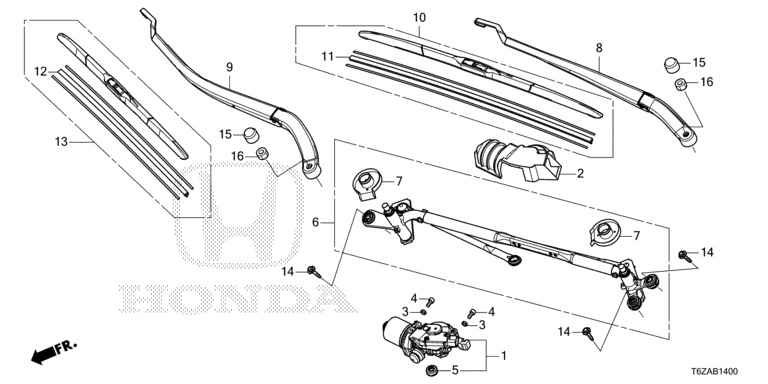

Windshield Wiper
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 76505-TG7-A01 | MOTOR COMP., FR. WIPER | 001 |
| 2 | 76506-TG7-A01 | COVER | 001 |
| 3 | 76507-TZ5-A01 | NUT, HEX. | 002 |
| 4 | 76508-TZ5-A01 | BOLT, TORX, 6X13 | 002 |
| 5 | 76524-S7A-004 | SEAL A, DUST | 001 |
| 6 | 76530-TG7-A01 | LINK COMP., FR. WIPER | 001 |
| 7 | 76561-TG7-A01 | COVER, PIVOT | 002 |
| 8 | 76600-TG7-A01 | ARM, WINDSHIELD WIPER (DRIVER SIDE) | 001 |
| 9 | 76610-TG7-A01 | ARM, WINDSHIELD WIPER (PASSENGER SIDE) | 001 |
| 10 | 76620-TG7-A01 | BLADE, WINDSHIELD WIPER (650MM) (DRIVER SIDE) | 001 |
| 11 | 76622-SMA-004 | RUBBER, BLADE (650MM) | 001 |
| 12 | 76622-TG7-A01 | RUBBER, BLADE (600MM) | 001 |
| 13 | 76630-TG7-A01 | BLADE, WINDSHIELD WIPER (PASSENGER SIDE) (600MM) | 001 |
| 14 | 90126-SR3-000 | BOLT-WASHER, 6X32 | 003 |
| 15 | 91611-SDA-A00 | CAP, FR. WIPER ARM (12MM) | 002 |
| 16 | 94001-12080-0S | NUT, HEX., 12MM | 002 |
