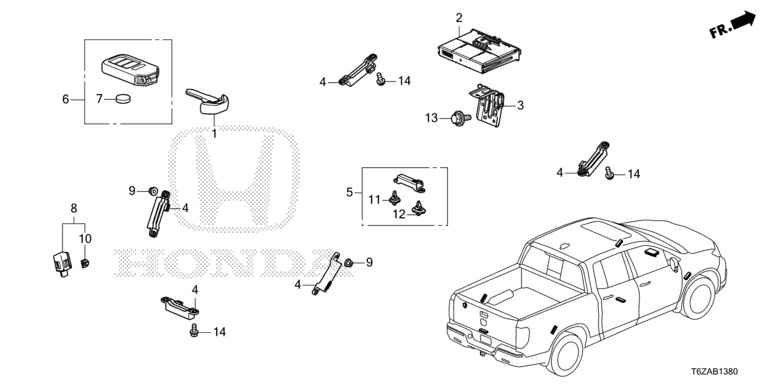

Smart Unit
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 35118-T2A-A50 | KEY EMERGENCY (BLANK) | 001 |
| 2 | 38320-T6Z-A51 | CONTROL UNIT, SMART POWER | 001 |
| 3 | 38321-TG7-A00 | BRACKET, SMART POWER CONTROL UNIT | 001 |
| 4 | 38387-TZ5-A01 | ANTENNA LF | 005 |
| 5 | 38387-TZ5-A11 | ANTENNA ASSY., LF | 001 |
| 6 | 72147-T6Z-A61 | FOB ENTRY KEY (DRIVER 1) | 001 |
| 6 | 72147-T6Z-A71 | FOB ASSY., ENTRY KEY (DRIVER 2) | 001 |
| 7 | 72148-SNB-000 | BATTERY COMP. (CR2032) | 002 |
| 8 | 74940-T7S-003 | BUZZER ASSY., SMART | 001 |
| 9 | 90361-SV4-003 | NUT, PAINT CUTTING, 6MM | 004 |
| 10 | 91533-STK-003 | CLIP, COUPLER (NATURAL) | 001 |
| 11 | 91533-TZ5-A01 | CLIP, LF ANTENNA (DIA 8.5) | 001 |
| 12 | 91534-TZ5-A01 | CLIP, LF ANTENNA (SLOT 8.5X12) | 001 |
| 13 | 91551-T90-A00 | BOLT, 6X18 (MAG-FORM) | 002 |
| 14 | 95701-06016-08 | BOLT, FLANGE, 6X16 | 006 |
