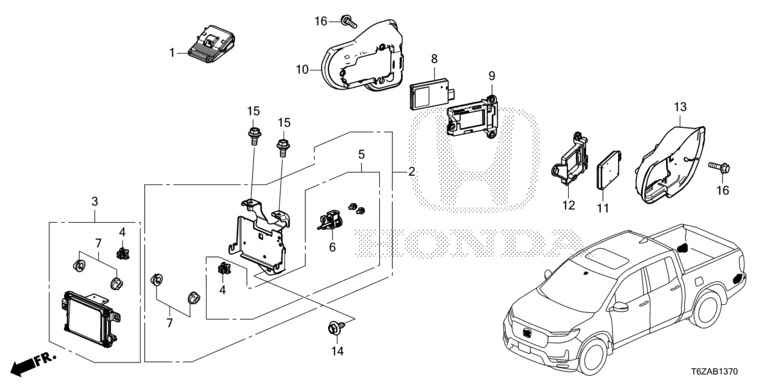

Radar
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 36160-T6Z-A22 | MONOCULAR CAMERA (REWRITABLE) | 001 |
| 2 | 36801-T6Z-A11 | BRACKET ASSY. | 001 |
| 3 | 36802-T6Z-A21 | RADAR SUB ASSY. | 001 |
| 4 | 36803-T6A-J01 | GRIP | 001 |
| 5 | 36805-T5A-J01 | AIMING ASSY. | 001 |
| 6 | 36806-T5A-J02 | GEAR ASSY., AIMING RADAR | 001 |
| 7 | 36806-T6A-J01 | SPACER SET (B) | 001 |
| 8 | 36931-T6Z-A12 | RADAR ASSY., R. | 001 |
| 9 | 36932-T6Z-A11 | BRACKET ASSY., R. | 001 |
| 10 | 36934-T6Z-A01 | COVER, BSI RADAR R. | 001 |
| 11 | 36936-T6Z-A12 | RADAR ASSY., L. | 001 |
| 12 | 36937-T6Z-A11 | BRACKET ASSY., L. | 001 |
| 13 | 36939-T6Z-A01 | COVER, BSI RADAR L. | 001 |
| 14 | 90104-TZ5-A01 | BOLT, EARTH, 6X15 | 001 |
| 15 | 90113-SJC-A00 | BOLT, SHOULDER, 6X14 | 002 |
| 16 | 90115-TZ5-A00 | BOLT, SHOULDER, 6X24 | 006 |
