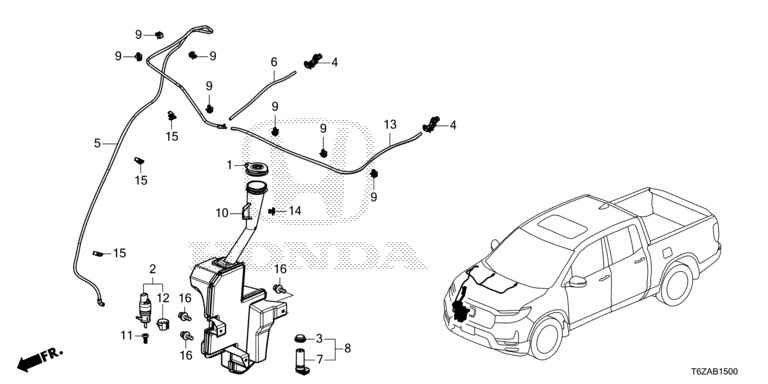

Windshield Washer
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 76802-TG7-A01 | CAP, WASHER MOUTH | 001 |
| 2 | 76806-T6Z-A02 | MOTOR WINDSHIELD WASHER | 001 |
| 4 | 76810-T6Z-A01 | NOZZLE ASSY., FR. WINDSHIELD WASHER | 002 |
| 5 | 76814-T6Z-A01 | TUBE COMP. A, FR. | 001 |
| 6 | 76832-TG7-A01 | TUBE, 4X7X330 | 001 |
| 9 | 76838-SZA-A30 | CLIP, WASHER TUBE | 009 |
| 10 | 76841-TG7-A02 | TANK WASHER (3.8L) | 001 |
| 11 | 76843-TG7-A01 | FILTER, WASHER | 001 |
| 12 | 76856-T6Z-A01 | COVER, BREATHER HOLE | 001 |
| 13 | 76868-TG7-A01 | TUBE, 4X7X820 | 001 |
| 14 | 91512-SX0-003 | CLIP, INNER FENDER | 001 |
| 15 | 91570-S50-003 | CLIP, WASHER TUBE | 003 |
| 16 | 93405-06016-08 | BOLT-WASHER, 6X16 | 003 |
