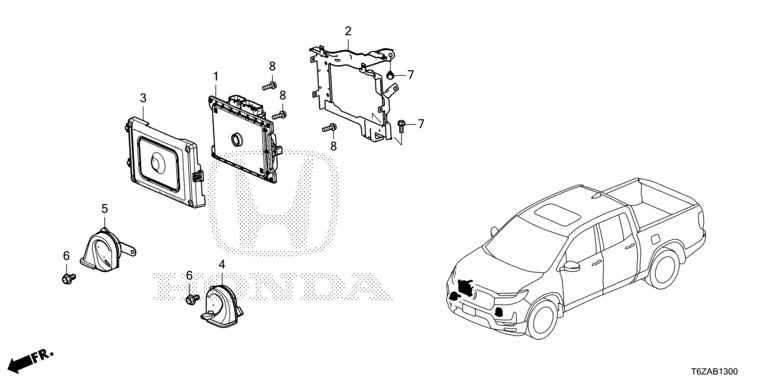

Control Unit Engine Room1
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 37820-5MJ-CB1 | CONTROL MODULE, POWERTRAIN (REWRITABLE) | 001 |
| 2 | 37821-RLV-A60 | BRACKET COMP., POWERTRAIN CONTROL MODULE | 001 |
| 3 | 37823-5MR-A00 | COVER, POWERTRAIN CONTROL MODULE | 001 |
| 4 | 38100-TZ5-A11 | HORN ASSY., LOW | 001 |
| 5 | 38150-TZ5-A11 | HORN ASSY., HIGH | 001 |
| 6 | 90150-SLJ-003 | BOLT, EARTH, 8X16 | 002 |
| 7 | 95701-06016-04 | BOLT, FLANGE, 6X16 | 002 |
| 8 | 95701-06020-08 | BOLT, FLANGE, 6X20 | 003 |
