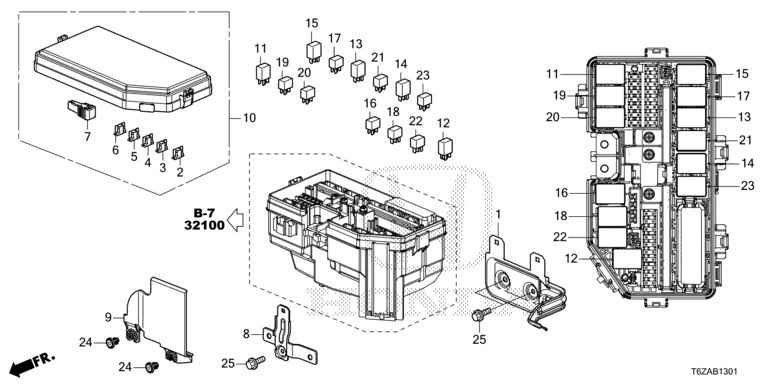

Control Unit Engine Room2
| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 32415-TG7-A00 | BRACKET, RELAY BOX (RR.) | 001 |
| 2 | 38221-SNA-A31 | FUSE, BLADE (7.5A) | 001 |
| 3 | 38221-SNA-A41 | FUSE, BLADE (10A) | 001 |
| 4 | 38221-SNA-A51 | FUSE, BLADE (15A) | 001 |
| 5 | 38221-SNA-A61 | FUSE, BLADE (20A) | 001 |
| 6 | 38221-SNA-A81 | FUSE, BLADE (30A) | 001 |
| 7 | 38235-TA0-A01 | PULLER, FUSE | 001 |
| 8 | 38253-T6Z-A00 | BRACKET, RELAY BOX (FR.) | 001 |
| 9 | 38254-T6Z-A00 | DEFLECTOR, FUSE BOX | 001 |
| 10 | 38256-T6Z-A03 | COVER, RELAY BOX UPPER | 001 |
| 11 | 39792-SDA-A01 | RELAY ASSY. (MICRO ISO) (OMRON) (RR. DEFOGGER) | 001 |
| 12 | 39792-SJC-A01 | RELAY ASSY., POWER (MICRO ISO) (OMRON) (FAN HI/LOW) | 001 |
| 13 | 39794-S10-003 | RELAY ASSY., POWER (5P) (MICRO ISO) (MITSUBA) (TAILGATE LOCK) | 001 |
| 14 | 39794-S10-003 | RELAY ASSY., POWER (5P) (MICRO ISO) (MITSUBA) (FR. WASHER) | 001 |
| 15 | 39794-S10-003 | RELAY ASSY., POWER (5P) (MICRO ISO) (MITSUBA) (STOP LIGHT) | 001 |
| 16 | 39794-SDA-901 | RELAY ASSY., ENGINE CONTROL MODULE (MITSUBA) (INJECTOR) | 001 |
| 17 | 39794-SDA-A03 | RELAY ASSY., POWER (MICRO ISO) (OMRON) (MAIN FAN) | 001 |
| 18 | 39794-SDA-A03 | RELAY ASSY., POWER (MICRO ISO) (OMRON) (HEADLIGHT LOW) | 001 |
| 19 | 39794-SDA-A03 | RELAY ASSY., POWER (MICRO ISO) (OMRON) (HORN) | 001 |
| 20 | 39794-SDA-A03 | RELAY ASSY., POWER (MICRO ISO) (OMRON) (SUB FAN) | 001 |
| 21 | 39794-SDA-A03 | RELAY ASSY., POWER (MICRO ISO) (OMRON) (ACM) | 001 |
| 22 | 39794-SDA-A03 | RELAY ASSY., POWER (MICRO ISO) (OMRON) (FR. FOG) | 001 |
| 23 | 39794-SDA-A05 | RELAY ASSY., POWER (MICRO ISO) (MITSUBA) (MAGNET CLUTCH) | 001 |
| 24 | 91505-TM8-003 | CLIP, BUMPER (NIFCO) | 002 |
| 25 | 95701-06012-07 | BOLT, FLANGE, 6X12 | 003 |
