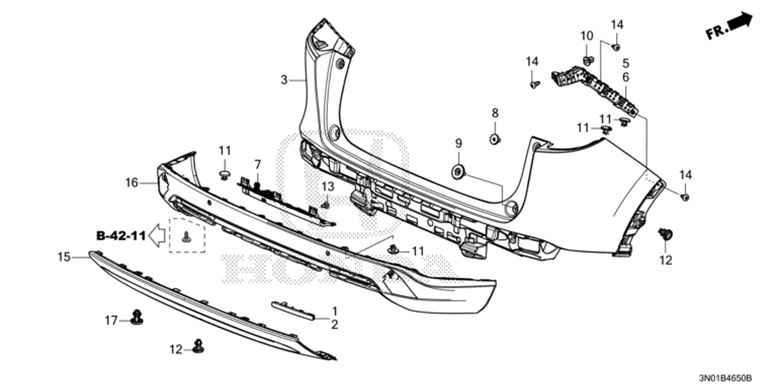

Rear Bumper
| Ref No | Part Number | Part Description |
| 1 | 33505-TL0-G01 | Right Rear Reflector ASSY |
| 2 | 33555-TL0-G01 | Left Rear Reflector ASSY |
| 3 | 71501-3M0-000ZB | Face Rear Bumper R565M Premium Crystal Red Metallic |
| 3 | 71501-3M0-000ZD | Face Rear Bumper NH902P Premium Sunlight White Pearl |
| 3 | 71501-3M0-000ZE | Face Rear Bumper NH883P Platinum White Pearl |
| 3 | 71501-3M0-000ZF | Face Rear Bumper NH731P Crystal Black Pearl |
| 3 | 71501-3M0-000ZH | Face Rear Bumper NH912P Slate Gray Pearl |
| 3 | 71501-3M0-000ZJ | Face Rear Bumper G555P Botanical Green Pearl |
| 3 | 71501-3M0-000ZK | Face Rear Bumper B645P Seabed Blue Pearl |
| 5 | 71630-3M0-003 | Rear Bumper Side Spacer, R |
| 6 | 71680-3M0-003 | Bumper Side Spacer, L. Rear |
| 7 | 74985-3M0-J61 | Kick Sensor ASSY |
| 8 | 90149-SAA-003 | Bolt, bumper |
| 9 | 90358-T6N-A01 | Bolt, Corner garnish stud |
| 10 | 90664-TR0-A01 | Grommet, Screw 5MM |
| 11 | 91501-TR0-003 | Clip, Inner Fender |
| 12 | 91505-TM8-003 | Clip, Bumper |
| 13 | 93903-25220 | Screw, Tapping (5X12) |
| 14 | 93903-25320 | Screw, Tapping (5X16) |
| 15 | 71562-3M0-N00 | Garnish, Rear bumper skirt |
| 16 | 71567-3M0-J70 | Sub Assy., Rear Bumper Lower |
| 17 | 91505-TM8-003 | Clip, Bumper |
