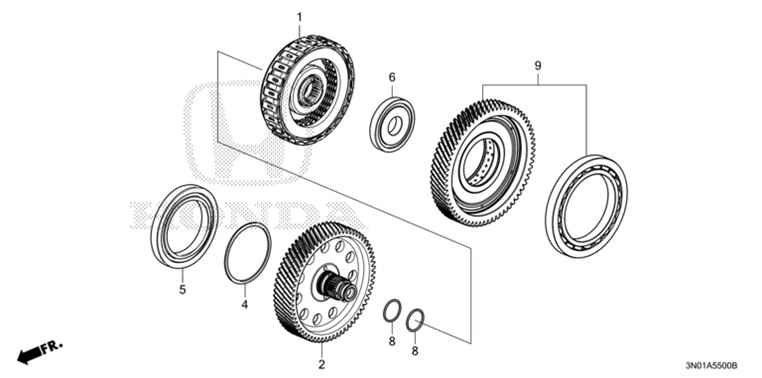

Input Shaft Overdrive Clutch
| Ref No | Part Number | Part Description |
| 1 | 22500-60H-003 | Overdrive Clutch |
| 2 | 23210-60H-000 | Shaft COMP., Input |
| 4 | 90391-5M4-000 | Shim A 77MM 1.576 |
| 4 | 90392-5M4-000 | Shim B 77MM 1.601 |
| 4 | 90393-5M4-000 | Shim C 77MM 1.626 |
| 4 | 90394-5M4-000 | Shim D 77MM 1.651 |
| 4 | 90395-5M4-000 | Shim E 77MM 1.676 |
| 4 | 90396-5M4-000 | Shim F 77MM 1.701 |
| 4 | 90397-5M4-000 | Shim G 77MM 1.726 |
| 4 | 90398-5M4-000 | Shim H 77MM 1.751 |
| 4 | 90399-5M4-000 | Shim I 77MM 1.776 |
| 4 | 90400-5M4-000 | Shim J 77MM 1.801 |
| 4 | 90401-5M4-000 | Shim K 77MM 1.826 |
| 4 | 90402-5M4-000 | Shim L 77MM 1.851 |
| 4 | 90403-5M4-000 | Shim M 77MM 1.876 |
| 4 | 90404-5M4-000 | Shim N 77MM 1.901 |
| 4 | 90405-5M4-000 | Shim O 77MM 1.926 |
| 4 | 90406-5M4-000 | Shim P 77MM 1.951 |
| 4 | 90407-5M4-000 | Shim Q 77MM 1.976 |
| 4 | 90408-5M4-000 | Shim R 77MM 2.001 |
| 4 | 90409-5M4-000 | Shim S 77MM 2.026 |
| 4 | 90410-5M4-000 | Shim T 77MM 2.051 |
| 4 | 90411-5M4-000 | Shim U 77MM 2.076 |
| 4 | 90412-5M4-000 | Shim V 77MM 2.101 |
| 4 | 90413-5M4-000 | Shim W 77MM 2.126 |
| 4 | 90414-5M4-000 | Shim X 77MM 2.151 |
| 4 | 90415-5M4-000 | Shim Y 77MM 2.176 |
| 4 | 90416-5M4-000 | Shim Z 77MM 2.201 |
| 4 | 90417-5M4-000 | Shim AA 77MM 2.226 |
| 4 | 90418-5M4-000 | Shim AB 77MM 2.251 |
| 4 | 90419-5M4-000 | Shim AC 77MM 2.276 |
| 4 | 90420-5M4-000 | Shim AD 77MM 2.301 |
| 4 | 90421-5M4-000 | Shim AE 77MM 2.326 |
| 4 | 90422-5M4-000 | Shim AF 77MM 2.351 |
| 4 | 90423-5M4-000 | Shim AG 77MM 2.376 |
| 4 | 90424-5M4-000 | Shim AH 77MM 2.401 |
| 5 | 91001-5M4-005 | Bearing, Ball 69X102X11 |
| 6 | 91002-60H-006 | Bearing, ball 21X66X10 |
| 8 | 91307-PY4-003 | O-Ring (24.5X1.9) |
| 9 | 06231-60H-305 | Gear Kit, Overdrive |
