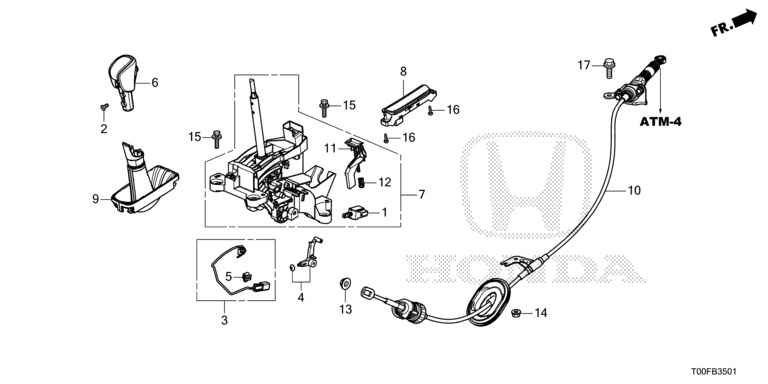

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 39550-T08-T51 | SOLENOID ASSY., SHIFT LOCK | 001 |
| 2 | 54001-TSV-K01 | SCREW, FLAT, 5X8 | 002 |
| 3 | 54022-T08-T51 | SWITCH SHIFT LOCK | 001 |
| 4 | 54023-T08-T51 | STOPPER SET, SHIFT LOCK | 001 |
| 5 | 54111-T08-T51 | CLIP, COUPLER | 001 |
| 6 | 54130-T08-T52ZA | KNOB ASSY., SELECT (NH900L NEUTRAL BLACK) | 001 |
| 7 | 54200-T08-T54 | BRACKET SET, BASE | 001 |
| 8 | 54210-T02-T51 | ILLUMINATION ASSY., SELECT | 001 |
| 9 | 54300-T08-T52ZA | BOOT COMP., SELECT (NH900L NEUTRAL BLACK) | 001 |
| 10 | 54315-T08-T52 | WIRE, CONTROL | 001 |
| 11 | 54711-T08-T53 | RELEASE, SHIFT LOCK | 001 |
| 12 | 54712-T08-T51 | SPRING, SHIFT LOCK | 001 |
| 13 | 90351-SB2-003 | NUT, FLANGE, 8MM | 001 |
| 14 | 90361-SV4-003 | NUT, PAINT CUTTING, 6MM | 001 |
| 15 | 93404-06025-08 | BOLT-WASHER, 6X25 | 004 |
| 16 | 93913-14420 | SCREW, TAPPING, 4X16 (PO) | 002 |
| 17 | 95701-08020-08 | BOLT, FLANGE, 8X20 | 002 |
