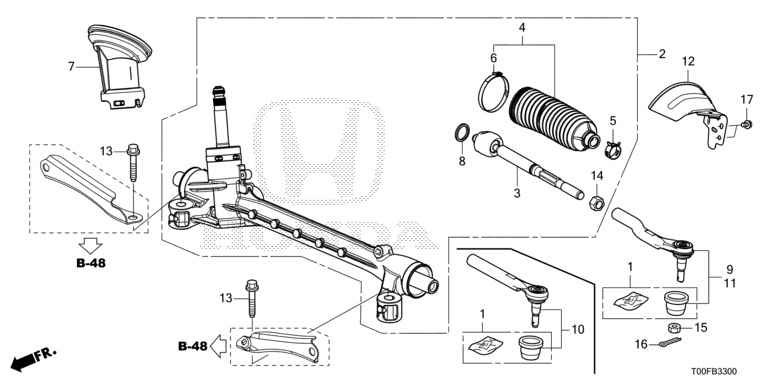

| Ref No. | Parts No. | Parts Name | Unit Qty |
| 1 | 06535-T5A-305 | BOOT SET, TIE ROD END | 002 |
| 2 | 53400-T08-043 | STEERING GEAR BOX (RH) | 001 |
| 3 | 53410-T08-003 | END COMP., RACK | 002 |
| 4 | 53429-T08-003 | SEAL SET, TIE ROD DUST | 002 |
| 5 | 53434-T5B-003 | CLIP | 002 |
| 6 | 53449-TG2-003 | BAND, BELLOWS | 002 |
| 7 | 53501-T00-000 | GROMMET, STEERING | 001 |
| 8 | 53537-T5B-003 | SPACER | 002 |
| 10 | 53540-TSV-T01 | END COMP., TIE ROD | 002 |
| 12 | 53692-T00-000 | PLATE, POWER STEERING HEAT BAFFLE | 001 |
| 13 | 90108-T5A-000 | BOLT, GEAR BOX MOUNTING | 002 |
| 14 | 90215-T5B-003 | NUT, HEX., 14MM | 002 |
| 15 | 94030-10080 | NUT, HEX., 10MM | 002 |
| 16 | 94201-20180 | PIN, SPLIT, 2.0X18 | 002 |
| 17 | 95701-06010-08 | BOLT, FLANGE, 6X10 | 002 |
